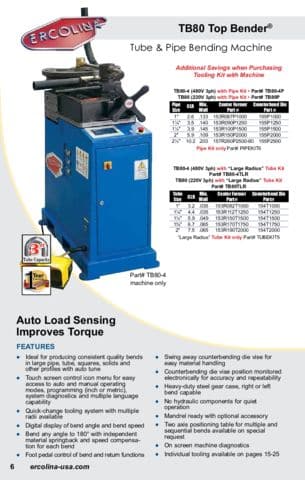

Ercolina Top Bender TB80

Our Price $25,900.00

The Ercolina TB80 Top Bender comes wiht an auto load sensor that improves torque, quiet operation and a small footprint makes this an ideal rotary draw bender for every machine fabrication shop.

Key Features of the TB80 Top Bender

  • Mild steel tube capacity 3″
  • Pipe capacity 2-1/2″ Sch. 40 Grade B A53
  • Maximum CLR 16-1/2″
  • Bend to CLR as small as 2D
  • Touch screen control icon menu for easy access to auto and manual operating modes, programming (inch or metric), system diagnostics and multiple language capability
  • Quick-change tooling system with multiple radii available
  • Digital display of bend angle and bend speed
  • Bend any angle to 180° with independent material springback and speed compensation for each bend
  • Foot pedal control of bend and return functions
  • Swing away counterbending die vise for easy material handling
  • Counterbending die vise position monitored electronically for accuracy and repeatability
  • Heavy-duty steel gear case, right or left bend capable
  • No hydraulic components for quiet operation
  • Mandrel ready with optional accessory
  • Two axis positioning table for multiple and sequential bends available on special request
  • On screen machine diagnostics
  • All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

CAPACITIES & SPECIFICATIONS

Material Type Max Diameter Max Wall Thickness
Pipe 3.000 pipe SCH 40
Mild Steel Tube 4.000 .120
Stainless Steel 3.000 SCH 10
Round Solids 2.000 NA
Square Tube 3.000 x 3.000 .187

All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.

PRODUCT INFO

For your convenience, there are instruction and service manuals for Ercolina Benders below. These manuals have been prepared for operators and maintenance personnel. It is important that all persons responsible for the care and operation of this equipment fully understand the information presented in this material. Manuals are shown for reference purposes only; please contact our Service Department with any questions or concerns.

TB80 Rotary Draw Demo

Programming the TB80
