TRUMPF TruTool TKF 700 Beveler
Our Price $3,300.00
The TRUMPF TruTool TKF 700 is a lightweight hand held beveller. The height of the bevel is automatically adjusted with no running downtime; quickly gauging the thickness of the sheet metal or steel plate. This TRUMPF Power Beveler can be used manually in either vertical, horizontal or even overhead positions. A great addition to your set of steel fabricating tools.
The Lightest Beveler, the TRUMPF TruTool TKF 700
The TruTool TKF 700 can be used wherever you make K-, V-, X- and Y-shaped bevel preparations. And this not only on level sheets but also pipes. Bevel size and sheet thickness are set without tools and very simply. The tool carrier is turned in one of three defined processing directions. TruTool TKF 700 is our lightest beveler. You can use it manually in vertical, horizontal or overhead position or in a work station.
At 5.4 kg, the lightest TRUMPF beveler
- No extra tools required to adjust the bevel height and sheet thickness
- Mounting brackets for bevel angles of 30°, 37.5° or 45°
- Quick release lock allows three defined directions for tool carrier setting
- Processes pipes with a minimum inside diameter of 80 mm
- Bevel inside cutouts starting 90 mm diameter and curved edges with a minimum radius of 40 mm
- Machine available as electric-version
Beveler Applications:
- Lock smiths
- Steelwork
- Machine manufacturing
- Shipbuilding
- Railroad cars
- Job Shops for sheet metal working
DETAILED SPECIFICATIONS
| TRUMPF Beveller | TruTool TKF 700 (230V) | TruTool TKF 700 (110V) |
|---|---|---|
| Bevel angle (Basis for other data) | 45 ° | 45 ° |
| Max. chamfer height | ||
| 4.9 mm | 4.9 mm |
| 4 mm | 4 mm |
| 2.8 mm | 2.8 mm |
| Max. chamfer length | ||
| 7 mm | 7 mm |
| 5.7 mm | 5.7 mm |
| 4 mm | 4 mm |
| Sheet thickness | 1 mm – 20 mm | 1 mm – 20 mm |
| Smallest inner radius | 40 mm | 40 mm |
| Working speed | 1.5 m/min | 1.5 m/min |
| Rated input power | 1400 W | 1400 W |
| Strokes at nominal load | 720 RPM | 570 RPM |
| Weight (electrical version: without cable, cordless version: with battery) | 5.4 kg | 5.4 kg |
| Accessories included | ||
| Cutter standard | DIN 911-5 | integrated |
| Grip | 0131063 | |
| TORX screwdriver | TX25 | 0131549 |
| Hex head wrench | DIN 911-5 | 0067857 |
| Hex head wrench | DIN 911-4 | 0067849 |
| Grease gun (filled with “G1”) | 25 g | 1369906 |
| Lubricating grease “G1” | 25 g | 0344969 |
| Roller guide complete | 0130868 | |
| Carrying case | included | |
| Additional accessories | ||
| Cutters | (set of 5, 1264353) | |
| Cutters CR | (set of 5, 1264400) | |
| Refitting set (2 cutters, 1 mount screw) standard | Standard | 0132371 |
| Refitting set (2 cutters, 1 mount screw CR) | für hochfeste Bleche | 0132740 |
| Cutter mount 45° | 0977765 | |
| Cutter mount 30° | 0134609 | |
| Cutter mount 37.5° | 0259379 | |
| Options (accessories) | ||

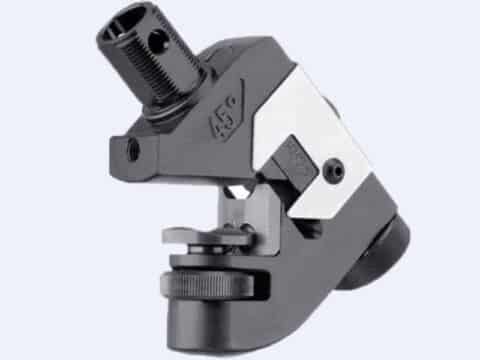

| Mount piece 45° | 0977767 | |

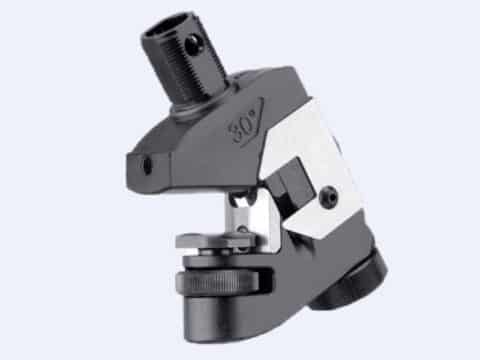

| Mount piece 30° | 0977770 | |

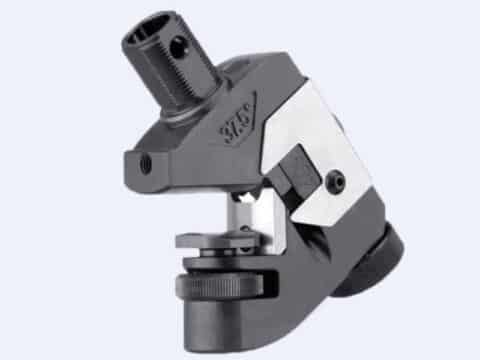

| Mount piece 37.5° | 0977769 | |
| Work station | 0977764 | |
| Complete support roll | for pipe machining | 0131559 |
| Punch and nibble oil for steel | 500 ml bottle | 0103387 |
| Punch and nibble oil for aluminium | 1000 ml bottle | 0125874 |
| Lubricating grease “G1” | 900 g | 0139440 |
SERVICE MANUALS
FABTECH SOLUTIONS is a proud distributor of Trumpf Power Tools. Our Service Department can assist with finding the right tool for the job. Ensuring high quality equipment, training and service resources is an essential component for prolonging the life and effectiveness of your sheet metal fabrication power tools and machinery.
For your convenience, there are instruction and service manuals for your Trumpf TruTools included below. These manuals have been prepared for operators and maintenance personnel. It is important that all persons responsible for the care and operation of this equipment fully understand the information presented in this material. Manuals are shown for reference purposes only; please contact our Service Department with any questions or concerns.
TRUMPF Beveler
