TRUMPF TruTool N 200 Power Nibbler
Our Price $1,000.00
The TRUMPF TruTool N 200 Power Nibbler is the perfect sheet metal tool for any roofing and siding project. Obviously, not limited to roofing and siding, this sheet metal nibbler is electrically powered and designed with a comfortable grip. It is an ideal sheet metal cutting tool for artists and contractors alike.
Effective Nibbling, TruTool N 200 Power Nibbler

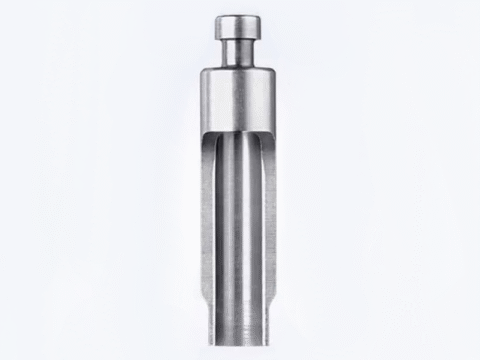

TruTool N 200 is well suited to cut flat- and corrugated sheet metal. With its hollow round punch, The TruTool N 200 is so maneuverable it can rotate on the spot.
An ideal tool for interior cutouts and notching
- Exceedingly fast with an unbeaten 1.7 meters per minute
- Machine can be rotated on the spot
- For highest maneuverability and a very small radius
- Ideal for hard to access areas
- Quick&Easy: tool free cutting direction, punch and tool change
- Machine available as electric version
Applications
- Metal fitting shops/Recesses and fitting work
- Disassembly of tanks and containers
- Roof and facade construction
- Container constructions
- Car-body shops
DETAILED SPECIFICATIONS
| TruTool Nibbler | TruTool N 200 (230V) | TruTool N 200 (110V) |
|---|---|---|
| Max. material thickness | ||
| 2 mm | 2 mm |
| 1.5 mm | 1.5 mm |
| 1 mm | 1 mm |
| 2.5 mm | 2.5 mm |
| Working speed | 1.7 m/min | 1.7 m/min |
| Start hole diameter | 17 mm | 17 mm |
| Smallest radius | 4 mm | 4 mm |
| Rated input power | 550 W | 550 W |
| Strokes at nominal load | 1450 RPM | 1450 RPM |
| Weight (electrical version: without cable, cordless version: with battery) | 1.8 kg | 1.8 kg |
| Accessories included | ||
| Punch | integrated | |
| Die | integrated | |
| Punch guide | integrated | |
| Screwdriver Torx TX20 | included | |
| TRUMPF Box S1 | included | |
| Additional accessories | ||
| Set Standard N (1 x die, 2 x punches) | Flasche 500 ml | (set of 5, 1264176) |
| Die | (set of 2, 1264393) | (set of 5, 1264394) |
| Punch guide | 1 piece | 0945692 |
| Set Standard N (1 x die, 2 x punches | 1 Stück | 0961961 |
| Grease “G1” | 25 g | 0344969 |
| Grease “G1” | 900 g | 0139440 |
| Punch and nibble oil for alu | Bottle 1000 ml | 0125874 |
| Punch and nibble oil for steel | Bottle 500 ml | 0103387 |
| Options (accessories) | ||
| Tool TruTool PN 200 | 1750693 | |
| Tool TruTool PN 201 | 1 piece | 1750692 |
| Chip bag | 1 piece | 0088622 |
SERVICE MANUALS
FABTECH SOLUTIONS is a proud distributor of Trumpf Power Tools. Our Service Department can assist with finding the right tool for the job. Ensuring high quality equipment, training and service resources is an essential component for prolonging the life and effectiveness of your sheet metal fabrication power tools and machinery.
For your convenience, there are instruction and service manuals for your Trumpf TruTools included below. These manuals have been prepared for operators and maintenance personnel. It is important that all persons responsible for the care and operation of this equipment fully understand the information presented in this material. Manuals are shown for reference purposes only; please contact our Service Department with any questions or concerns.
TRUMPF TruTool Nibblers
