TRUMPF TruTool N 350 Power Nibbler
The TRUMPF TruTool N 350 Power Nibbler is a great example of a handheld power nibbler. Lightweight and portable, this durable sheet metal tool has been ergonomically designed to ensure optimum comfort during handheld operation. It has three cutting directions to ensure coverage of hard to reach jobs and perfect nibbling during both the straight and also curved cutouts.
$2,100.00
A Compact, Hand Held Power Nibbler, TruTool N 350
The TruTool N 350 is an extremely compact and handy nibbler. With the hollow round punch principle you can turn the machine in place 360° without impediment and make interior cuts and notches without difficulty. A speed regulator facilitates working to plans and templates. Optimal grip ergonomics make for comfortable operation.
Optimal grip ergonomics for comfortable operation
- 3 cutting directions for hard to reach jobs
- Perfect nibbling for straight or curved cutouts
- Machine available as electric-version
Power Nibbler Applications
- Metal fitting shops/Recesses and fitting work
- Disassembly of tanks and containers
- Roof and facade construction
- Container constructions
- Car-body shops
DETAILED SPECIFICATIONS
| Hand Nibbler | TruTool N 350 (230V) | TruTool N 350 (110V) |
|---|---|---|
| Max. material thickness | ||
| 3.5 mm | 3.5 mm |
| 2.3 mm | 2.3 mm |
| 1.8 mm | 1.8 mm |
| 3.5 mm | 3.5 mm |
| Working speed | 1.4 m/min | 1.2 m/min |
| Start hole diameter | 30 mm | 30 mm |
| Smallest radius | 7 mm | 7 mm |
| Rated input power | 1400 W | 1140 W |
| Strokes at nominal load | 720 RPM | 635 RPM |
| Weight (electrical version: without cable, cordless version: with battery) | 3.7 kg | 3.7 kg |
| Accessories included | ||
| Punch | 0974659 | |
| Die | integrated | |
| Grip | integrated | |
| Grip | TruTool N 350 pneumatic | 0257239 |
| Tube grease “G1” | TruTool N 350 | 0344969 |
| Carrying case | 25 g | included |
| Additional accessories | ||
| Punch Standard | (set of 5, 1264152) | |

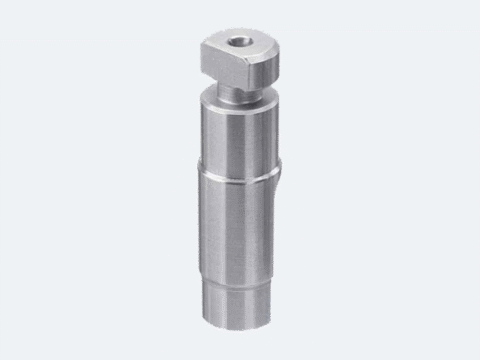

| Punch CR | (set of 2, 1264181 | |

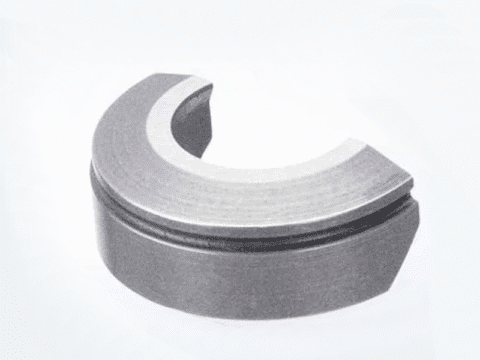

| Die Standard | (set of 5, 1264183) | |
| Die CR | (set of 2, 1264187) | |
| Spare parts (set of 2 punches, 1 die standard) | (set of 2, 1264182) | 0127854 |
| Carbon brush (set of 2) | 110 – 120 V | 0349442 |
| Carbon brush | 220 – 230 V | 0349350 |
| Lamella (set of 4) | pneumatic | 0119972 |
| Options (accessories) | ||
| Chip bag | 0110104 | |
| Punch and nibble oil for steel | 0097210 | |
| Punch and nibble oil for aluminum | 500 ml bottle | 0103387 |
| Hanging hook | 1000 ml bottle | 0125874 |
| Distance sleeve | 1 piece | 0097208 |
SERVICE MANUALS
FABTECH SOLUTIONS is a proud distributor of Trumpf Power Tools. Our Service Department can assist with finding the right tool for the job. Ensuring high quality equipment, training and service resources is an essential component for prolonging the life and effectiveness of your sheet metal fabrication power tools and machinery.
For your convenience, there are instruction and service manuals for your Trumpf TruTools included below. These manuals have been prepared for operators and maintenance personnel. It is important that all persons responsible for the care and operation of this equipment fully understand the information presented in this material. Manuals are shown for reference purposes only; please contact our Service Department with any questions or concerns.
TRUMPF TruTool Nibblers
