TRUMPF TruTool N 700 Power Nibbler

The TRUMPF TruTool N 700 Power Nibbler is a portable and light weight metal cutting tool, weighing in at only 18lbs, this tool is great for overhead and hard to reach areas. The overall design of this power nibbler is exceptional, aside from the comfortable ergonomic design, the handle can be rotated and locked into 3 different positions.

SKU: 1773545 Category:
FREE SHIPPING!!!

$4,200.00

Benefits of the TruTool N 700 Power Nibbler

A further advantage that improves mobility is the rotating motor handle. This can be locked in three positions. This allows you the best working position in tight and hard-to-reach spots. With a weight of about 8 kg, the TruTool N 700 is a light weight in a sheet thickness range up to 7 mm. It cuts double sheets and bends up to 90°, which suits it for dismantling tanks and containers. So that you can take on very varied jobs, there are two quickly exchangeable grips.

Our light-weight tool in the sheet thickness range up to 7 mm

  • 4 cutting directions
  • Two different grips for optimal handling especially in hard-to-reach work areas
  • High operating comfort thanks to adjustable motor handle
  • Machine available as electric-version

Applications

  • Metal fitting shops/Recesses and fitting work
  • Disassembly of tanks and containers
  • Roof and fasade construction
  • Container construction
  • Car-body shops

DETAILED SPECIFICATIONS

 Profile NibblerTruTool N 700 (230V)TruTool N 700 (110V)
Max. material thickness
  • Steel 400 / mm²
7 mm7 mm
  • Steel 600 / mm²
5 mm5 mm
  • Steel 800 / mm²
3.5 mm3.5 mm
  • Aluminium 250 / mm²
10 mm10 mm
Working speed1.3 m/min1.1 m/min
Start hole diameter50 mm50 mm
Smallest radius140 mm140 mm
Rated input power1600 W1500 W
Strokes at nominal load300 RPM260 RPM
Weight (electrical version: without cable, cordless version: with battery)8.3 kg8.3 kg
Accessories included
Punch standardintegrated

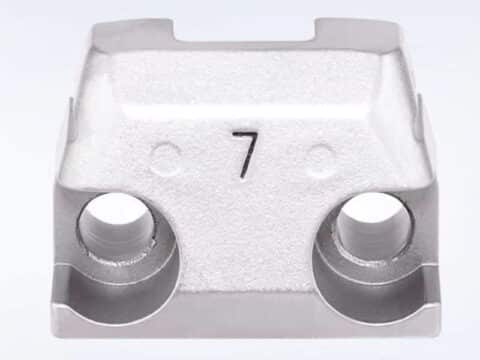

Die 7integrated
Bow handle1279590
Compact handle1279618
Hex head wrenchDIN 911-50067857
Tube grease “G1”25 g0344969
Setting gauge1411767
TRUMPF Box1763686
Additional accessories
Punch Standard(set of 2, 1264117)(set of 5, 1264119)
Punch CR(set of 2, 1264414)(set of 5, 1264415)
Die P7 for profile sheets 5 – 7 mm(set of 1, 0098721)(set of 2, 1264174)
Die 5(set of 1, 0098723)(set of 2, 1264173)
Die 7 (5-7 mm) 1 pce. 0098722(set of 2, 1264137)(set of 5, 1264139)
Wear plate(set of 2, 1264373)(set of 5, 1264374)
Punch guide(set of 1, 1274571)(set of 2, 1264366)
Options (accessories)
Chip bag0109275
Punch and nibble oil for steel500 ml bottle0103387
Punch and nibble oil for aluminum1000 ml bottle0125874
Roller guidecomplete1284047

SERVICE MANUALS

FABTECH SOLUTIONS is a proud distributor of Trumpf Power Tools. Our Service Department can assist with finding the right tool for the job. Ensuring high quality equipment, training and service resources is an essential component for prolonging the life and effectiveness of your sheet metal fabrication power tools and machinery.

For your convenience, there are instruction and service manuals for your Trumpf TruTools included below. These manuals have been prepared for operators and maintenance personnel. It is important that all persons responsible for the care and operation of this equipment fully understand the information presented in this material. Manuals are shown for reference purposes only; please contact our Service Department with any questions or concerns.
