TRUMPF TruTool F 300 with 1400W motor

This TRUMPF TruTool F 300 comes with a 1400 Watt motor to give it the extra strength and durable process needed for effective usage in any metal fabrication shop. This sheet metal tool is an exceptional seam locker, hammering the pieces into place and creating air and water tight seals in the process. The stronger motor out performs it’s smaller counter parts and works with thicker sheet metals and plate metals. Available as an Electric Seam Locker as well.

SKU: 1893377 Category:
FREE SHIPPING!!!

$3,500.00

Benefits of the TruTool F 300 with 1400W motor

There is no need for conversion for processing of shaped and curved pieces. Adaptation to sheet thickness is automatic. On-site assembly is also possible. With its powerful 1400 W motor and high operating speed, this seam closer is an even stronger version of the TruTool F 300. Whether for straight or curved conduits, Pittsburgh seams are always closed in an independent roll/glide process. The sheet thickness ranges from 0.75 mm to 1.25 mm construction steel and the integrated infeed ensures continuous and tight seaming.

For even more power and high operating speed

  • With more powerful drive and higher working speed.
  • Closes Pittsburgh seams on straight and radius duct from 0.75 mm to 1.25 mm sheet
  • No refitting when processing formed or folded pieces
  • Machine available as electric-version

Applications

  • Heating and ventilation works
  • Chimney works
  • House-front construction
  • Industrial ventilators

DETAILED SPECIFICATIONS

 TRUMPF Seam LockerTruTool F 300 with 1400 W motor (230V)TruTool F 300 with 1400 W motor (110V)
Min. material thickness
  • Steel 400 / mm²
0.75 mm0.75 mm
Max. material thickness
  • Steel 400 / mm²
1.25 mm1.25 mm
Min. flange height (B)
  • Sheet thickness > 0.75 – 1
11 mm11 mm
  • Sheet thickness > 1 – 1.25
13 mm13 mm
Working speed6.5 m/min – 10.5 m/min6.5 m/min – 10.5 m/min
Smallest inner radius (preformed)150 mm150 mm
Smallest outer radius300 mm300 mm
Rated input power1400 W1200 W
Weight (electrical version: without cable, cordless version: with battery)6.2 kg6.2 kg
Accessories included
Hex head wrenchDIN 911-40067849
Hex head wrench6 mm0138648
Form piece0118860
Universal oil6 mm0136688
Carrying case500 mlincluded
Additional accessories

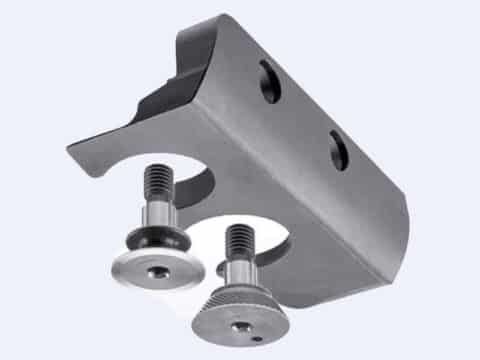

Guide rail0920881
Drive roll 30°0135477
Drive roll 75°0135478
Roll (horizontal)0135791
Support roll0136773
